FOX 13 – 16 – 22
FOX 13S – 16S – 22S



ENTRY-LEVEL WITH HIGH PERFORMANCES

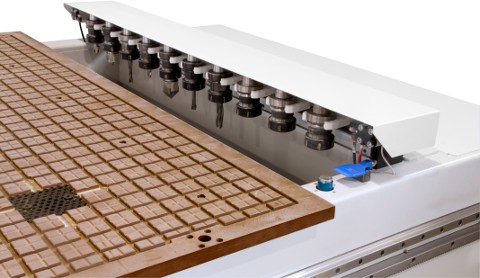

Last new centers CNC, the Fox represents the completion of our full range. It is a machine “entry-level” that offers high performance and a very simple approach to CNC technology. Like all routers made COSMEC TECHNOLOGY, the FOX structure has high rigidity steel-welded, high-vacuum system depression and components of the highest quality. The standard version is equipped with an electric spindle ISO 30 7,5 KW and a 6-position linear tool changer, located on the back of your work.

PERFORMANCE, QUALITY AND PRICE

The machine allows a transition panel up to 200 mm. The work surface is constructed bakelite and divided into 4 sectors, which can be activated independently. The 4 mouths sampling allow a uniform distribution of the vacuum on the whole area of work: this system makes the machine particularly suitable for processing “nesting”. As the name indicates it is still a work center that can perform universal, duly equipped, different applications for all types of needs, from the cutting, milling and drilling. The FOX is equipped with numerical control, color display, mobile console and USB connectivity for easy transfer of files. This machine, the result of the latest technology, is the perfect combination of high performance, attractive price and excellent quality.

TECHNICAL DATAFOX 13FOX 16FOX 22
Working field3200 x 1300 mm
4200 x 1300 mm *
6200 x 1300 mm *
8200 x 1300 mm *
3200 x 1600 mm
4200 x 1600 mm *
6200 x 1600 mm *
8200 x 1600 mm *
3200 x 2200 mm
4200 x 2200 mm *
6200 x 2200 mm *
8200 x 2200 mm *
Max thickness for panel feedingmm. 150mm. 150mm. 150
Vectorial speed35 mt/min
85 mt/min *
35 mt/min
85 mt/min *
35 mt/min
85 mt/min *
Linear speed25 mt/min
60 mt/min *
25 mt/min
60 mt/min *
25 mt/min
60 mt/min *
Vacuum pump capacity100 mc/h
250 mc/h *
100 mc/h
250 mc/h *
100 mc/h
250 mc/h *
Tool changer6 positions
10 positions *
8 positions
12 positions *
10 positions
14 positions *
Spindle rotation500 : 24000 rpm500 : 24000 rpm500 : 24000 rpm
Spindler powerkW 7,5
kW 10 *
kW 7,5
kW 10 *
kW 7,5
kW 10 *
Tool chuckISO 30
HSK F63 *
ISO 30
HSK F63 *
ISO 30
HSK F63 *
* Optional



TECHNICAL DATAFOX 13SFOX 16SFOX 22S
Working field  2460 x 1300 mm  3100 x 1560 mm  2100 x 4050 mm
Max thickness for panel feedingmm. 200mm. 200mm. 200
Vectorial speed  35 mt/min  35 mt/min  35 mt/min
Linear speed  25 mt/min  25 mt/min  25 mt/min
Vacuum pump capacity100 mc/h
250 mc/h *
100 mc/h
250 mc/h *
100 mc/h
250 mc/h *
Tool changer6 positions
10 positions *
8 positions
12 positions *
10 positions
14 positions *
Spindle rotation500 : 24000 rpm500 : 24000 rpm500 : 24000 rpm
Spindler powerkW 7,5
kW 10 *
kW 7,5
kW 10 *
kW 7,5
kW 10 *
Tool chuckISO 30
HSK F63 *
ISO 30
HSK F63 *
ISO 30
HSK F63 *
* Optional
