Conquest 3200 / 4200 / 5200 / 6200



PERFECT MIX BETWEEN ROUTER AND POINT-TO-POINT

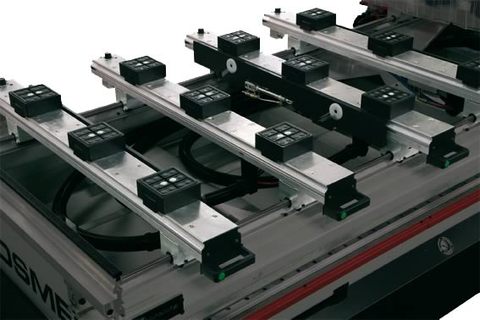

Conquest 3200 represents the perfect combination between a CNC router, with its solidity and accuracy, and a point-to-point machine, as far as speed and flexibility are concerned. One of the main characteristics of this machine is the open frame (cantilever), which allows to load and to unload pieces of big size very easily. Moreover there is the possibility to equip the machine either with a canalized bakelite table or a set of movable bars and vacuum cups. In both cases, the panel working tickness is 300 mm. This machine is equipped with an 7,5 kW electrospindle and two automatic tool changers: a transported one, carousel type with 8 positions, and an auxiliary one, located on the frame column, with 2 or 4 positions, where all angular aggregates available on the market can be mounted.

A MACHINE AT CUSTOMER SIZES

The variety of configurations of this machine permits to meet any special Customer’srequirement. Together with the main electrospindle you can have an independent boring unit (13 independent vertical spindles, 4 horizontal spindles on the x-axis and 2 on the y-axis), a 2,2 Kw orientable unit for horizontal routing with one or two outlets, an orientable sawing unit up to 7,5 Kw with one or two outlets or as an alternative a second electrospindle with tool changer. On request the electrospindle can be equipped with a rotating axis. This machine is equipped with an electrical cabinet fitted out with an OSAI series 10 numerical controller, Windows interface and hand held pendant.

TECHNICAL SHEET CONQUEST 3200 / 4200 / 5200 / 6200

TECHNICAL DATA3200420052006200
StrokesX: mm. 3970
Y: mm. 1940
Z: mm. 520
X: mm. 4970
Y: mm. 1940
Z: mm. 520
X: mm. 5970
Y: mm. 1940
Z: mm. 520
X: mm. 6970
Y: mm. 1940
Z: mm. 520
Working fieldmm. 3200 x 1300/1800mm. 4200 x 1300/1800mm. 5200 x 1300/1800mm. 6200 x 1300/1800
Max thickness for panel feedingmm. 300/500mm. 300/500mm. 300/500mm. 300/500
Vectorial speed110 mt/m110 mt/m110 mt/m110 mt/m
Spindle rotation500/24.000 rpm500/24.000 rpm500/24.000 rpm500/24.000 rpm
Spindler power (S1)Kw. 7,5/10/13,5/15Kw.7,5/10/13,5/15Kw. 7,5/10/13,5/15Kw. 7,5/10/13,5/15
Tool chuckISO 30 – HSK F63ISO 30 – HSK F63ISO 30 – HSK F63ISO 30 – HSK F63
Piggy back tool change (positions)N° 8N° 8N° 8N° 8
Auxiliary tool changer (positions)N° 4/12/20N° 4/12/20N° 4/12/20N° 4/12/20
Inverter powerKw. 11/15Kw. 11/15Kw. 11/15Kw. 11/15
Vacuum pump capacity100 / 250 / 500 mc/h100 / 250 / 500 mc/h100 / 250 / 500 mc/h100 / 250 / 500 mc/h
Standard numerical controlOSAI serie 10OSAI serie 10OSAI serie 10OSAI serie 10
INSTALLATION DATA3200420052006200
Max absorbed powerKw. 35Kw. 35Kw. 35Kw. 35
Air-working pressure6 bar6 bar6 bar6 bar
Air-circuit connetion coupling/td>G 3/8″G 3/8″G 3/8″G 3/8″
Extraction socketØ mm. 200Ø mm. 200Ø mm. 200Ø mm. 200
Air consumption for extraction2650 mc/h2650 mc/h2650 mc/h2650 mc/h
SHIPPING DATA3200420052006200
Weight5870 Kg.6420 Kg.7130 Kg.8080 Kg.
Shipping dimensionsmm. 5700 x 2320 x 2450mm. 6700 x 2320 x 2450mm. 7700 x 2320 x 2450mm. 8700 x 2320 x 2450
