HARD JOBS IN ABSOLUTE PRECISION

Conquest 255 is an excellent compromise between price and quality. Designed with a movable bridge and a fixed table, the machine allows to process thick panels with the greatest accuracy, thanks to its closed frame. High speed of all axes considerably reduce working cycle times.

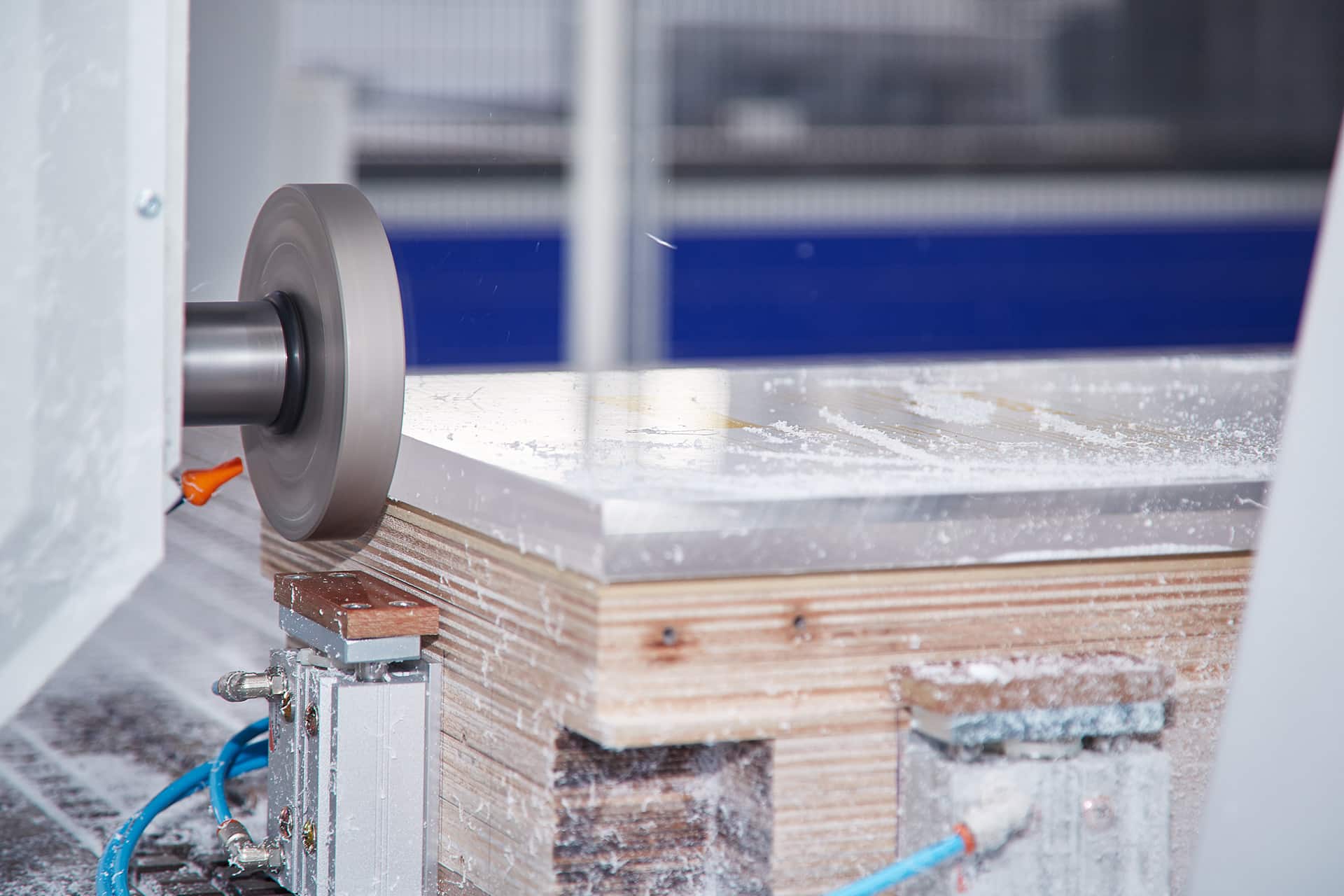

WORKING TABLE SET UP FOR ANY NEED

The working table is made of bakelite and can provide one or two separate vacuum locking areas. On request, special retractable stops and vacuum cups of different sizes can be located on the table, to increase the flexibility of the machine operations. Panel tickness is 250 mm.

FLEXIBLE CONFIGURATION

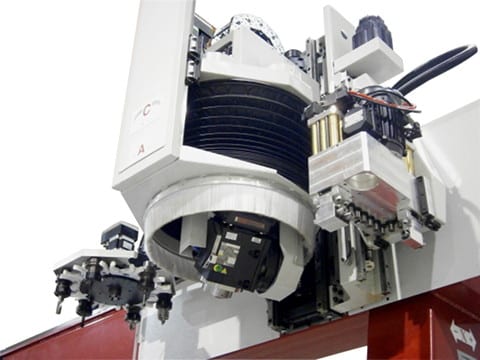

This machine is also very versatile in the configuration of the operating units: in addition to the main electrospindle, available both with ISO 30 and HSK F63 connection and provided with a rotating and transported 12-position tool changer, it is possible to have a second operating unit according to the Customer’s request (sawing unit, horizontal routing unit or another electrospindle). The main spindle can be equipped with a CNC controlled rotating axis on 360° to execute workings with angular aggregates in different directions. The boring unit can be equipped with a various number of independent vertical and horizontal spindles on the X and Y axis. The machine is completed with OSAI Series 10 numerical controller with a PC interface and hand held pendant, which allows an easy test of the working programs.

TECHNICAL SHEET CONQUEST 255 – 515 – 715

TECHNICAL DATACONQUEST 255CONQUEST 515CONQUEST 715
StrokesX: mm. 2630
Y: mm. 1990
Z: mm. 430
X: mm. 3250
Y: mm. 1990
Z: mm. 430
X: mm. 3280
Y: mm. 2590
Z: mm. 430
Working fieldmm. 2580 x 1300mm. 3170 x 1600mm. 3220 x 2200
Max thickness for panel feedingmm. 250/500/700/1000mm. 250/500/700/1000mm. 250/500/700/1000
Vectorial speed85 mt/min85 mt/min85 mt/min
Linear speed60 mt/min60 mt/min60 mt/min
Spindle rotation500-20000 rpm500-20000 rpm500-20000 rpm
Spindler powerKw. 6,6 / 7,5 / 11Kw. 6,6 / 7,5 / 11Kw. 6,6 / 7,5 / 11
Tool chuckISO 30 – HSK F63ISO 30 – HSK F63ISO 30 – HSK F63
Inverter powerKw. 11 / 15Kw. 11 / 15Kw. 11 / 15
Vacuum pump capacity100 / 180 / 250 mc/h100 / 180 / 250 mc/h100 / 180 / 250 mc/h
Standard numerical controlOSAI serie 10 with PCOSAI serie 10 with PCOSAI serie 10 with PC
Automatic tool changer12 positions12 positions12 positions
INSTALLATION DATACONQUEST 255CONQUEST 515CONQUEST 715
Air-working pressure7 bar7 bar7 bar
Air-circuit connetion coupling/td>G 3/8″G 3/8″G 3/8″
Extraction socketmm. 160mm. 160mm. 160
Air consumption for extraction1300 mc/h1300 mc/h1300 mc/h
SHIPPING DATACONQUEST 255CONQUEST 515CONQUEST 715
Weight2610 Kg4150 Kg6140 Kg
Shipping dimensionsmm. 5400 x 2330 x 2500mm. 6500 x 2300 x 2500mm. 6500 x 2300 x 2500
